Place of Origin : Guangdong, China
Model Number : Gspark
Brand Name : GCL
Packaging Details : Flight case, Ply-wooden case
Supply Ability : 5000 Square Meter/Square Meters per Month
Price : Price to be discussed
MOQ : Min. order: 20
Certification : EMC/CE/ROHS/CCC/FCC/BIS
Application : conference room
Type : LED
Color : Full color
Panel Size : 640*480mm
Brightness : 1000cd/sqm
Module size : 320*160mm
Refresh rate : 3840Hz
LED chip : SMD2121
Power Supply : Meanwell
Viewing angle : 160H/160V
Scan mode : 1/20Scan
Cabinet material : Die-casting Alumium
Weight : 8.5Kg/panel
IP rate : IP43/IP43
Pixel Pitch : P2.5
Port : Shenzhen Port
Product | P1.82 | P2 | P2.5 | P3.07 | P4 | ||||
Pitch | 1.82mm | 2mm | 2.5mm | 3.07mm | 4mm | ||||
Density(pixels/m2) | 302560 | 250000 | 160000 | 105688 | 62500 | ||||
LED Type | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | ||||
Brightness | 900nits | 1000nits | 1000nits | 1200nits | 1200nits | ||||
Scan Method | 1/44 | 1/40 | 1/32 | 1/20 | 1/16 | ||||
Size | 640*480*75 mm | | | | | ||||
Material | Die casting Aluminum | | | | | ||||
Weight | 8.5kg | | | | | ||||
Protection Level | IP34 | | | | | ||||
Maintenance | 100%Front Service | | | | | ||||
Max Power | 540w/m2 | 540w/m2 | 540w/m2 | 540w/m2 | 540w/m2 | ||||
Average Power | 180w/m2 | 180w/m2 | 180w/m2 | 180w/m2 | 180w/m2 | ||||
Refresh Rate | 2880-3840HZ | | | | | ||||
Viewing Angle | H160o,V160o | | H160°,V160° | H160o,V140o | | ||||
Voltage | AC100~240V(50-63Hz) | | | | | ||||
Working Temperature | -30 oC - + 65 oC | | | | | ||||
Working Humidity | 10% -- 90%RH | | | | | ||||
Color Temperature | 6500-9500K | | | | | ||||
Certificationa | EMC/CE/ROHS/CCC/FCC/ISO | | | | |
![]() |

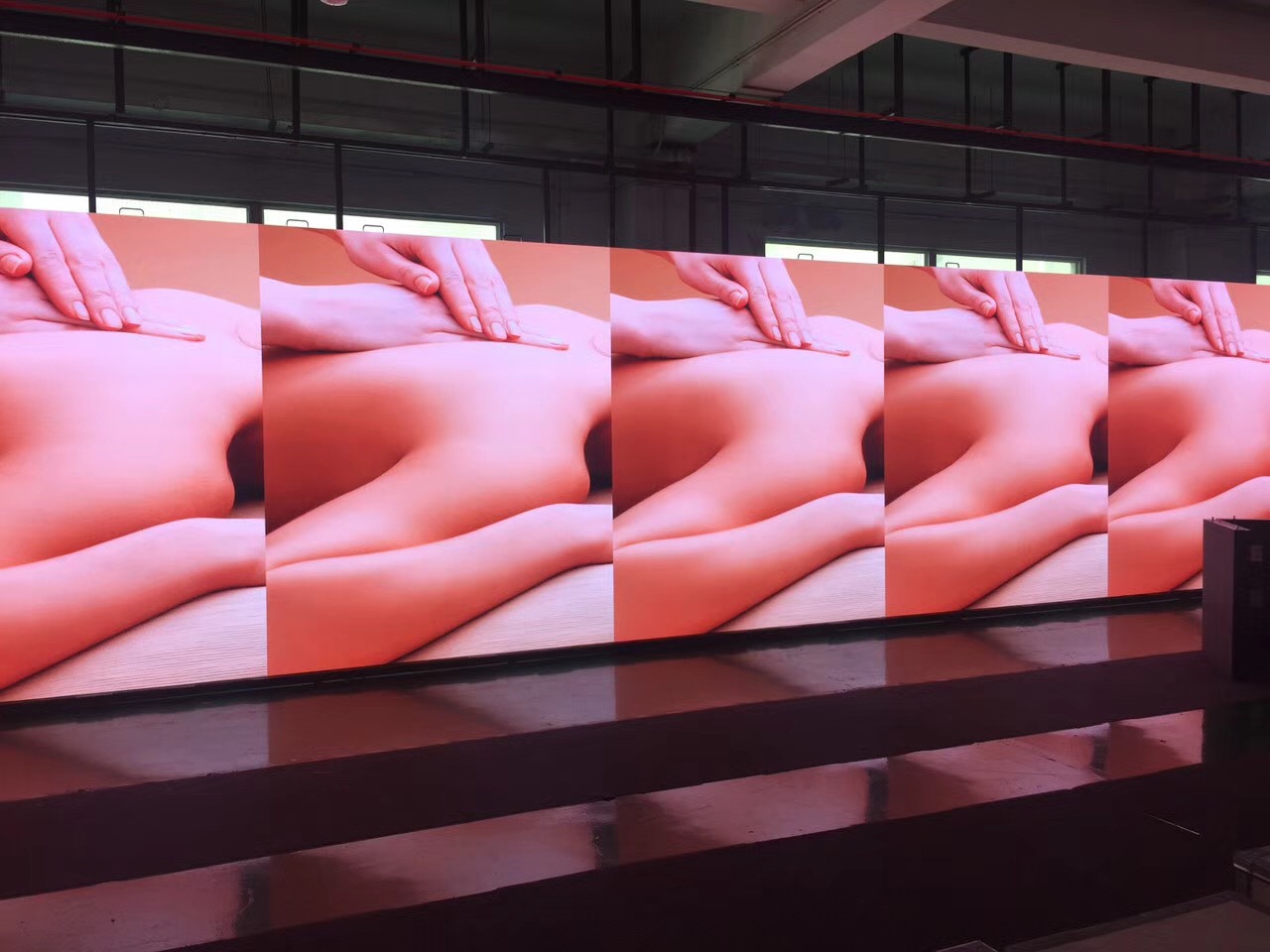

Customized Meeting Room Fixed LED Display P2.5 With Wide Viewing Angle Images |
